- NSRLL30XV2T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC3552233
-
Category:Schottky Diode
-
Package:SOD-523-2
-
Datasheet:Datasheet 3D Model
-

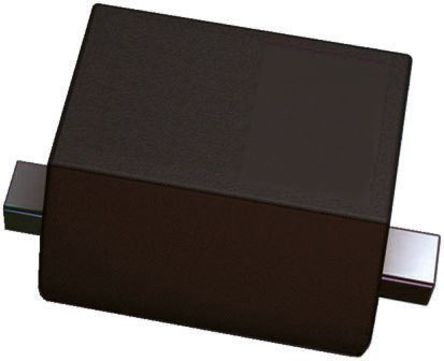

Description:ON Semi NSRLL30XV2T1G, SMT Schottky Switching Diode, 30V 200mA, 2Pin SOD-523
-
Stock Locations:
-
Availability:16,465 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.04
Updated at 29/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Schottky 30V 200mA (DC) Surface Mount SOD-523
NSRLL30XV2T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-523-2 |
| Forward Voltage | 0.6 V |
| Thermal Resistance | 635℃/W (RθJA) |
| Forward Current | 200 mA |
| Maximum Forward Voltage (Max) | 600 mV |
| Forward Current (Max) | 200 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 200 mW |
| Show | |
| Size-Length | 1.3 mm |
| Size-Width | 0.9 mm |
| Size-Height | 0.7 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
