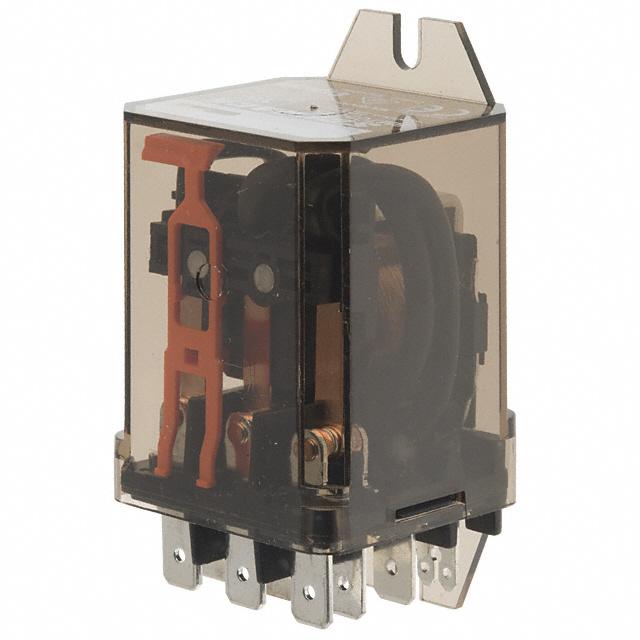

Image is for your reference only,please check specifications for details
- RM838024 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC90102133
-
Category:Power Relay
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VDC 475Ω 25A DPDT (( 38.5mm 35.5mm 58.5mm)) DIN Rail Power Relay
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **RM Series Power Relay**
- **Featured List:**
- * Contact material AgCdO
- * DPNO types have 3mm contact gap
- * Mechnical life: 16A versions; 20 x 106, 25 & 30A versions; 10 x 106
RM838024 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Current Rating | 25 A |
| Input Voltage (DC) | 24.0 V |
| Contacts Type | DPDT |
| Power Consumption | 1.2 W |
| voltage rating | 2.40 V |
| Contact Current Rating | 25 A |
| Coil Voltage | 24 VDC |
| Coil Current | 50.53 mA |
| Coil Power (DC) | 1.20 W |
| Coil Resistance | 475 Ω |
| Carry Current | 25.0 A |
| Coil Voltage (DC) | 24 V |
| Switching Current (Max) | 25 A |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -45 ℃ |
| Show | |
| Size-Length | 38.5 mm |
| Size-Width | 35.5 mm |
| Size-Height | 58.5 mm |
| Contact Material | Silver Cadmium Oxide |
| Operating Temperature | -45℃ ~ 65℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| ELV Compliant | Non-Compliant |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
