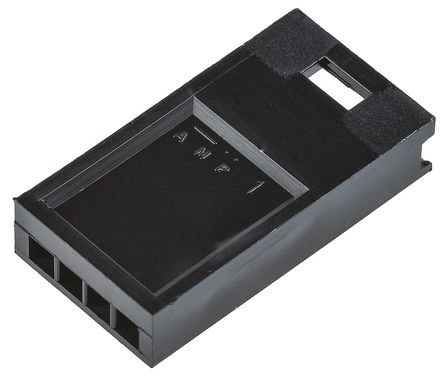

Image is for your reference only,please check specifications for details

280629 - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC13706196
Category:
Connector Enclosure
Package:
-
Datasheet:
Datasheet 3D Model
Description:
AMP - TE CONNECTIVITY 280629 Wire-To-Board Connector, 2.54mm, 4Contacts, Plug, AMPMODU Mod II Series, Crimp, 1Rows
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Pin Housing**
These AMPMODU II 2.54 mm pitch Pin Housings are part of TE Connectivity Italian range and will mate with PCB and Cable Mount Receptacles.

Show

280629 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	PCB
Number of Pins	4 Pin
Case/Package	-
Pin Pitch	2.54 mm
Number of Contacts	4 Contact
Gender	Male
Number of Rows	1 Row
Orientation	Straight
Flammability Rating	UL 94 V-1
Number of Positions	4 Position
Current Rating (Max)	3A/触头
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	12.5 mm
Size-Width	23.8 mm
Size-Height	23.8 mm
Housing Color	Black
Color	Black
Material	Thermoplastic
Operating Temperature	-65℃ ~ 105℃
Housing Material	Thermoplastic
Product Lifecycle Status	Active
Packaging	Bag
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8538906000
ECCN Code	EAR99
