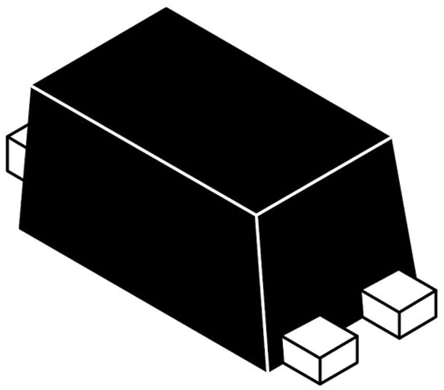

NTNUS3171PZT5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC27235276
Category:
MOSFET, MOSFET Transistor
Package:
SOT-1123-3
Datasheet:
Datasheet 3D Model
Description:
Small Signal MOSFET -20V -200mA 3.5Ω Single P-Channel SOT-1123 with ESD Protection, SOT-1123, 1.0x0.6x0.37, 0.35P, 8000-REEL
Stock Locations:
Availability:
6 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTNUS3171PZT5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-1123-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	2 Ω
Power Dissipation	0.2 W
Drain to Source Voltage (Vds)	20 V
Rise Time	56 ns
Input Capacitance (Ciss)	13pF @15V(Vds)
Input Power (Max)	125 mW
Fall Time	145 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125mW (Ta)
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.4 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
