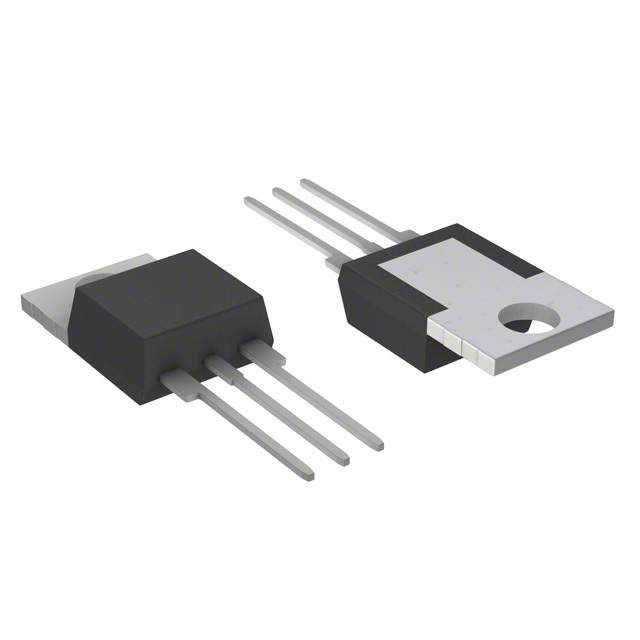

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
Silicon rectifers that are excellent for DC phase control applications with motor loads. Isolated mounting tab allows for use in circuits with common anode or common cathode connections.
Features & Benefts
• RoHS Compliant
• Glass – passivated junctions
• Voltage capability up to 1000 V
• Surge capability up to 350 A

Show

D4015L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Output Current	≤15.0 A
Number of Positions	3 Position
Forward Voltage	1.6 V
Polarity	Standard
Reverse recovery time	4 µs
Forward Current	9.5 A
Max Forward Surge Current (Ifsm)	225 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	9.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature	-40℃ ~ 125℃
	Show
Size-Length	10.67 mm
Size-Width	4.78 mm
Size-Height	9.4 mm
Product Lifecycle Status	Obsolete
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
