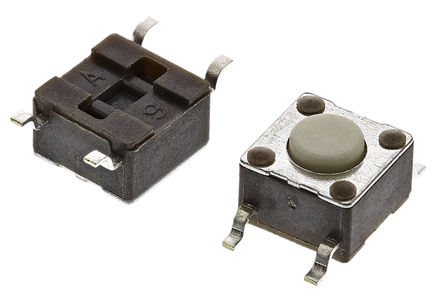

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FSM2JSMAATR tactile switch from TE Connectivity lets you quickly turn on your system by use of pressure. It has a SPST configuration. This device has a maximum current rating of 0.05 A @ 24VDC. This tactile switch has an operating temperature range of -20 °C to 85 °C. The FSM2JSMAATR tactile switch has a gull wing termination style. This round button actuator is 0.7 mm long. This product is 6 mm long, 4.55 mm tall and 10 mm deep. The maximum DC voltage rating is 24 VDC.
FSM2JSMAATR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Contact Plating | Silver |
| Voltage Rating (DC) | 24 V |
| Current Rating | 50 mA |
| Number of Rows | 2 Row |
| Contacts Type | SPST |
| Contact Current Rating | 50mA @24VDC |
| Current Rating (Max) | 0.05A @24VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (DC Max) | 24 V |
| Maximum Contact Resistance (Max) | 100 mΩ |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 10 mm |
| Size-Height | 4.55 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -35℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536509031 |
| ECCN Code | EAR99 |
