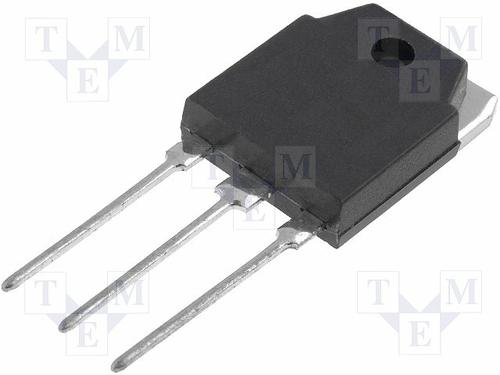

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2STC4468 is a NPN epitaxial planar Bipolar Transistor manufactured using BiT-LA (bipolar transistor for linear amplifier) technology. The resulting transistor exhibits good gain linearity behaviour. It is recommended for 70 to 100W high fidelity audio frequency amplifier output stages.
High power
Complementary to 2STA1695
Fully characterized at 125°C

Show

2STC4468 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Frequency	20 MHz
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	100 W
Breakdown Voltage (Collector to Emitter)	140 V
Continuous Collector Current	10A
hFE Min	70 @3A, 4V
Input Power (Max)	100 W
DC Current Gain (hFE)	70
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	100000 mW
	Show
Size-Length	15.8 mm
Size-Width	5 mm
Size-Height	18.7 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
