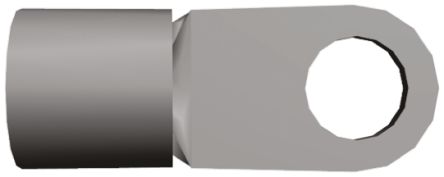

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- ** Terminal Body:** Copper per ASTM B-152, tin-plated per MILT-10727.
- ** Features:**
- * Specially Designed to Terminate Solid and Stranded Wire, Irregular Shaped Conductors, and Combinations of These While Still Retaining the Superior Performance Characteristics of Single-Purpose Terminals and Splices
- * "W" Style Crimp Creates Terminations of Optimum Electrical Properties and Is Completely Reliable, Giving Long Services In Punishing Environments
- * Temperature Rating Up to 170° C Max.
- * SOLISTRAND® Terminals Meet or Exceed the Requirements of MIL-T-7928, Type I, Class 1 and 2
321600 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Gender | Female |
| Wire Gauge | 2 AWG |
| Contact Plating | Tin |
| Orientation | Straight |
| Termination Style | Ring Lug, Ring |
| Operating Temperature (Max) | 170 ℃ |
| Show | |
| Size-Length | 38.79 mm |
| Size-Width | 15.87 mm |
| Size-Thickness | 1.78 mm |
| Color | Red |
| Contact Material | Copper |
| Material | Copper |
| Insulation Material | Non-Insulated |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
