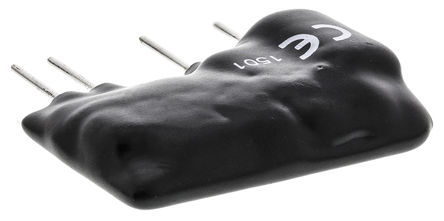

Image is for your reference only,please check specifications for details
- D2W202F - Crydom
-
Manufacturer:Crydom
-
ManyChip's Part#:MC21265007
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:CRYDOM D2W202F Solid State Relay, D2W Series, SIP, SPST-NO, 2A, PCB, Through Hole, 24VAC, 280VAC
-
Stock Locations:
-
Availability:1,653 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 22.24
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 3.0 mA @ 5 VDC Rated Current, 4000 V (RMS) Dielectric Strength, AC Output SIP Relay
- ** 2-3.5 Amp; 120/240 VAC
- * AC SIP
- **
- The D2W Series features an epoxy-coated package that provides exceptional environmental protection. Pinouts are compatible with Series 6 and OAC type I/O modules.* Operating Temperature Range:** –30°C to 80°C. ** Isolation Voltage (V RMS ):** 2500\. ** Dimensions (L × W × H):** 1.7" × 0.47" × 1.18" (43.1 × 11.9 × 29.9 mm).
- ** Features**
- * DC Control, AC Output
- * Triac Output
- * UL, CSA Approved
D2W202F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 3.00 V, 32.0 V (max) |
| Operating Voltage | 100V (max) |
| Current Rating | 2 A |
| Capacitance | 10 pF |
| Output Voltage | 24V ~ 280V |
| Output Current | 2000 mA |
| Contacts Type | SPST-NO |
| Load Current | 2 A |
| Input Current | 3 mA |
| Isolation Voltage | 4000 v |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 280 V |
| Output Current (Max) | 2 A |
| Input Current (Min) | 3 mA |
| Load Current (Max) | 2 A |
| Load Current (Min) | 0.06 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 280 V |
| Operating Voltage (Min) | 24 VAC |
| Operating Voltage (Max) | 280 VAC |
| Input Voltage | 3VDC ~ 32VDC |
| Show | |
| Size-Length | 43.2 mm |
| Size-Width | 11.9 mm |
| Size-Height | 29.9 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
