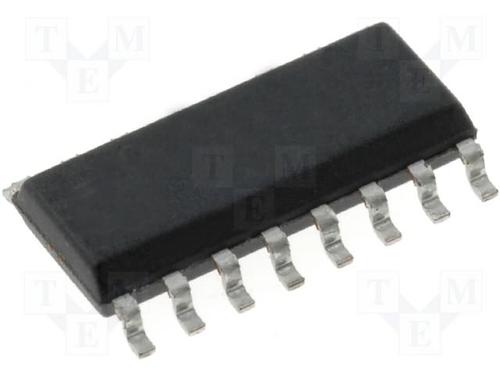

Image is for your reference only,please check specifications for details

74HC595D - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC8066196
Category:
Shift Register IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
NXP 74HC595D Shift Register, HC Family, 74HC595, Serial to Parallel, Serial to Serial, 1Element, 8Bit, SOIC
Stock Locations:
Availability:
233 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 74HC595D is a high speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A. The 74HC595D is an 8 stage serial shift register with a storage register and 3 state outputs. The registers have separate clocks. Data is shifted on the positive going transitions of the shift register clock input (SHCP). The data in each register is transferred to the storage register on a positive going transition of the storage register clock input (STCP). If both clocks are connected together, the shift register will always be one clock pulse ahead of the storage register. The shift register has a serial input (DS) and a serial standard output (Q7S) for cascading. It is also provided with asynchronous reset (active LOW) for all 8 shift register stages. The storage register has 8 parallel 3-state bus driver outputs. Data in the storage register appears at the output whenever the output enable input (OE) is LOW.
8 bit serial input
8 bit serial or parallel output
Storage register with 3 state outputs
Shift register with direct clear
100MHz typ. shift out frequency

Show

74HC595D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	100 MHz
Supply Voltage (DC)	5.00 V
Number of Positions	16 Position
Number of Bits	8 Bit
Number of Gates	1 Gate
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
