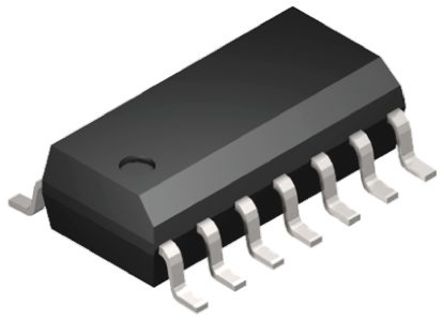

Image is for your reference only,please check specifications for details

AD7780BRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC609257
Category:
Analog to Digital, ADC IC
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7780BRZ Analog to Digital Converter, 24Bit, 16.7 SPS, Single, 2.7V, 5.25V, SOIC
Stock Locations:
Availability:
235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD7780BRZ is a 24-bit pin-programmable ultralow power sigma-delta Analog-to-digital Converter (ADC) for bridge sensor products. Consuming only 330µA, the AD7780 is particularly suitable for portable or battery-operated products where very low power is required. It also has a power-down mode that allows the user to switch-OFF the power to the bridge sensor and power down the AD7780 when not converting, thus increasing the battery life of the product. For ease of use, all the features of the converter are controlled by dedicated pins. Each time a data read occurs, eight status bits are appended to the 24-bit conversion. These status bits contain a pattern sequence that can be used to confirm the validity of the serial transfer.
Pin-programmable filter response
Pin-programmable in-amp gain
Pin-programmable power-down and reset
Status function
Internal clock oscillator
Internal bridge power-down switch
Independent interface power supply
2-wire serial interface - SPI compatible and Schmitt trigger on SCLK

Show

AD7780BRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Supply Voltage (DC)	2.70V (min)
Operating Voltage	2.7V ~ 5.25V
Supply Current	420 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Number of Bits	24 Bit
Power Dissipation	2.10 mW
Sample Rate	16.7 SPS
Resolution (Bits)	24.0 Bit
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
