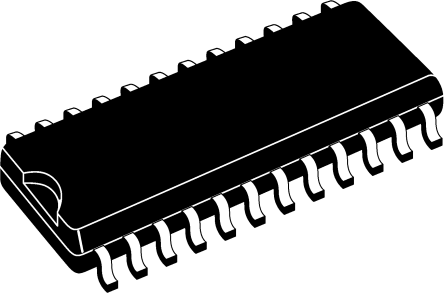

AD7880CRZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1675243
Category:
Analog to Digital, ADC IC
Package:
SOIC-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7880CRZ Analog to Digital Converter, 12Bit, 66KSPS, Single, 5V, SOIC
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 53.26

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD7880 is a high speed, low power, 12-bit A/D converter which operates from a single +5 V supply. It consists of a 3 µs track/hold amplifier, a 12 µs successive-approximation ADC, versatile interface logic and a multiple-input range circuit. The part also includes a power save feature.
An internal resistor network allows the part to accept both unipolar and bipolar input signals while operating from a single +5 V supply. Fast bus access to modern microprocessors and digital signal processors.
The AD7880 features a total throughput time of 15 µs and can convert full power signals up to 33 kHz with a sampling frequency of 66 kHz.
In addition to the traditional dc accuracy specifications such as linearity, full scale and offset errors, the AD7880 is also fully specified for dynamic performance parameters including harmonic distortion and signal-to-noise ratio.
The AD7880 is fabricated in Analog Devices" Linear Compatible CMOS (LC2MOS) process, a mixed technology process that combines precision bipolar circuits with low power CMOS logic. The part is available in a 24-pin, 0.3 inch wide, plastic or hermetic dual-in-line package (DIP) as well as a small 24-lead SOIC package.
### Features and Benefits
12-Bit Monolithic A/D Converter
66 kHz Throughput Rate
\- 12 µs Conversion Time
\- 3 µs On-Chip Track/Hold Amplifier
70 dB SNR
|
Low Power:
\- Power Save Mode: 2 mW typ
\- Normal Operation: 25 mW typ
Fast Data Access Time: 57 ns
Small 24-Lead SOIC and 0.3" DIP Packages
---|---

Show

AD7880CRZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SOIC-24
Digital Logic Level	SAR
Supply Voltage (DC)	5.00V (max)
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	12 Bit
Power Dissipation	25 mW
Sample Rate	66 ksps
Power Consumption	25 mW
Resolution (Bits)	12.0 Bit
Input Impedance	10.0 MΩ
Number of ADCs	1 ADC
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	50 mW
Number of Input Channels	2 Channel
Supply Voltage (Max)	5 V
	Show
Size-Length	15.6 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
