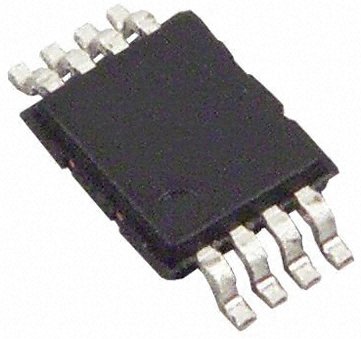

AD8129ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC7055680
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8129ARMZ Differential Amplifier, Low Cost, 1 Amplifiers, 800µV, 10dB, 200MHz, -40℃, 85℃
Stock Locations:
Availability:
319 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.61

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD8129/AD8130 are designed as receivers for the transmission of high speed signals over twisted-pair cables to work with the AD8131 or AD8132 drivers. Either can be used for analog or digital video signals and for high speed data transmission.
The AD8129/AD8130 are differential-to-single-ended amplifiers with extremely high CMRR at high frequency. Therefore, they can also be effectively used as high speed instrumentation amps or for converting differential signals to single-ended signals.
### Features and Benefits
High Speed
AD8130: 270 MHz, 1090 V/µs @ G = +1
AD8129: 200 MHz, 1060 V/µs @ G = +10
High CMRR
94 dB min, dc to 100 kHz
80 dB min @ 2 MHz
70 dB @ 10 MHz
High input impedance: 1 MΩ differential
Low noise
AD8130: 12.5 nV/√Hz
AD8129: 4.5 nV/√Hz
Input common-mode range ±10.5 V
Low distortion, 1 V p-p @ 5 MHz:
AD8130, -79 dBc worst harmonic @ 5 MHz
AD8129, -74 dBc worst harmonic @ 5 MHz
User-adjustable gain
No external components for G = +1
Power supply range +4.5 V to ±12.6 V
Power-down

Show

AD8129ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Output Current	35mA @5V
Supply Current	13 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	86 dB
Bandwidth	200 MHz
Slew Rate	1.06 kV/μs
Gain Bandwidth Product	70 MHz
Input Offset Voltage	800 µV
Input Bias Current	500 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	200 MHz
Minimum CMRR Range	86 dB
Supply Voltage (Max)	20V ~ 30V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
