- AD8159ASVZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1498540
-
Category:Logic Controller, Logic IC
-
Package:TQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:Digital Crosspoint Single 12x12 3.2Gbps 2:1 Mux/1:2 Demux Switch 100Pin TQFP EP Tray
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 21.15
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8159 is an asynchronous, protocol agnostic, quad-lane 2:1 switch with 12 differential PECL-/CML-compatible inputs and 12 differential CML outputs. The operation of this product is optimized for NRZ signaling with data rates of up to 3.2 Gbps per lane. Each lane offers two levels of input equalization and four levels of output pre-emphasis.

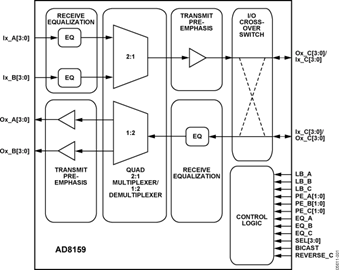

- The AD8159 consists of four multiplexers and four demultiplexers, one per lane. Each port is a four-lane link, and each lane runs up to a 3.2 Gbps data rate, independent of the other lanes. The lanes are switched independently using the four select pins, SEL[3:0]; each select pin controls one lane of the port. The AD8159 has low latency and very low lane-to-lane skew.
- The main application of the AD8159 is to support redundancy on both the backplane side and the line interface side of a serial link. The device has unicast and bicast capability; therefore, it can be configured to support either 1 + 1 or 1:1 redundancy.
- The AD8159 supports reversing of the output and input pins on one of its ports, which helps to connect two ASICs with opposite pinouts.
- The AD8159 is also used for testing high speed serial links by duplicating incoming data and sending it to the destination port and to the test equipment simultaneously.
- **Applications**
- Low cost redundancy switch
- SONET OC-48/SDH-16 and lower data rates
- XAUI (10 gigabit Ethernet) over backplane
- Gigabit Ethernet over backplane
- Fibre Channel 1.06 Gbps and 2.125 Gbps over backplane
- InfiniBand® over backplane
- PCI Express (PCIe) over backplane
- ### Features and Benefits
- Port level 2:1 mux/1:2 demux
- Each port consists of 4 lanes
- Each lane runs from dc to 3.2 Gbps, independent of the other lanes
- Compensates over 40 inches of FR4 at 3.2 Gbps through 2 levels of input equalization or 4 levels of output pre-emphasis
- |
- Accepts ac- or dc-coupled differential CML inputs
- Low deterministic jitter, typically 20 ps p-p
- Low random jitter, typically 1 ps rms
- BER < 10−16
- Please see data sheet for additional features
- ---|---
AD8159ASVZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | TQFP-100 |
| Supply Voltage (DC) | 3.00V (min) |
| Supply Current | 320 mA |
| Number of Circuits | 4 Circuit |
| Power Dissipation | 125 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | 5A991.b.1 |
