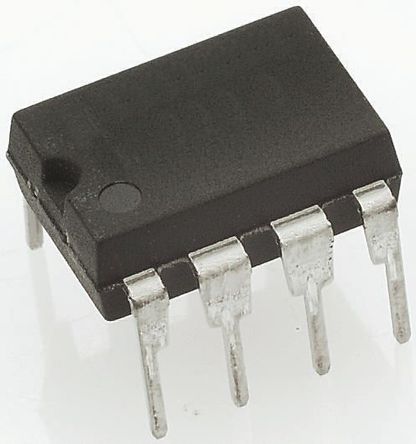

Image is for your reference only,please check specifications for details

AD818ANZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC928587
Category:
Video Amplifier, CATV Amplifier IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD818ANZ Video Amplifier, 1 Amplifiers, 130MHz, 500V/µs, -40℃, 85℃, 50mA
Stock Locations:
Availability:
282 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD818ANZ is a low power Op-amp optimized for use in video applications that require gains equal to or greater than +2 or -1. The AD818"s low differential gain and phase errors, single supply functionality, low power and high output drive make it ideal for cable driving applications such as video cameras and professional video equipment. With video specs like 0.1dB flatness to 55MHz and low differential gain and phase errors of 0.01% and 0.05°, along with 50mA of output current, the AD818 is an excellent choice for any video application. The 130MHz 3dB bandwidth (G=+2) and 500V/ms slew rate make the AD818 useful in many high speed applications including video monitors, CATV, colour copiers, image scanners and fax machines. The AD818 is fully specified for operation with a single +5V power supply and with dual supplies from ±5 to ±15V.
Excellent video performance
High speed
High output drive capability
Flexible power supply
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.

Show

AD818ANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Output Current	50 mA
Supply Current	7 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120 dB
Quiescent Current	7.5 mA
Input Capacitance	1.5 pF
Bandwidth	130 MHz
Slew Rate	500 V/μs
Gain Bandwidth Product	80 MHz
Input Impedance	300 kΩ
Input Offset Voltage	2 mV
Input Bias Current	6600 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	130 MHz
Gain Bandwidth	130 MHz
Minimum CMRR Range	82 dB
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
