AD8194ACPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1196466
Category:
Interface IC, Interface Controller
Package:
LFCSP-32
Datasheet:
Datasheet 3D Model
Description:
Interface IC - analogue switches Analog Devices AD8194ACPZ LFCSP-32-VQ
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.33

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

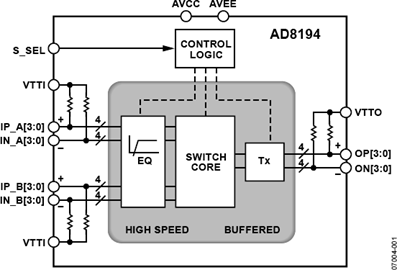

The AD8194ACPZ is a quad 2:1 TMDS® Switch for high speed HDMI™/DVI video applications. The device features equalized inputs, ideal for systems with long cable runs. Its primary function is to switch the high speed signals from one of two single-link (HDMI or DVI) sources to the single-link output. The device is a fully buffered switch solution with 50R input and output terminations, providing full-swing output signal recovery and minimizing reflections for improved system signal integrity. Data supports rates up to 2.25Gbps, enabling greater than 1080p deep colour (12-bit colour) HDMI formats and greater than UXGA (1600 x 2300) DVI resolutions.
Pin-to-pin compatible with the AD8193
Enables HDMI 1.3-compliant receiver
4 TMDS channels per input/output
Supports 250Mbps to 2.25Gbps data rates
Supports 25MHz to 225MHz pixel clocks
Fully buffered unidirectional inputs/outputs
Equalized inputs for operation with long HDMI cables (20m at 2.25Gbps)
Matched 50R input and output on-chip terminations
Low added jitter
Standards compliant - HDMI receiver, DVI
Fully buffered inputs and outputs
Single-pin source select bit

Show

AD8194ACPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Supply Voltage (DC)	3.00V (min)
Supply Current	50 mA
Number of Channels	4 Channel
Number of Positions	32 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.2 W
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
Input Voltage	3.3 V
	Show
Size-Length	5 mm
Size-Width	5 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
