Description
- Product Details
- The AD8202 is a single-supply difference amplifier for amplifying and low-pass filtering small differential voltages in the presence of a large common-mode voltage (CMV). The input CMV range extends from −8 V to +28 V at a typical supply voltage of 5 V.
- The AD8202 is available in die and packaged form. The MSOP and SOIC packages are specified over a wide temperature range, from −40°C to +125°C, making the AD8202 well-suited for use in many automotive platforms.
- Automotive platforms demand precision components for better system control. The AD8202 provides excellent ac and dc performance keeping errors to a minimum in the user’s system. Typical offset and gain drift in the SOIC package are 0.3 µV/°C and 1 ppm/°C, respectively. Typical offset and gain drift in the MSOP package are 2 µV/°C and 1 ppm/°C, respec¬tively. The device also delivers a minimum CMRR of 80 dB from dc to 10 kHz.

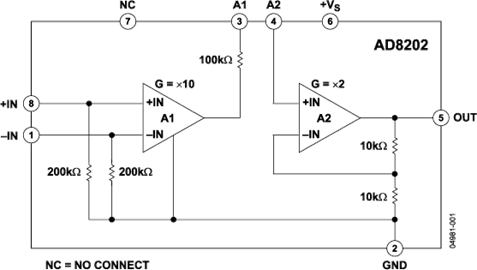

- The AD8202 features an externally accessible 100 kΩ resistor at the output of the Preamp A1 that can be used for low-pass filter applications and for establishing gains other than 20.
- **Applications**
- Transmission control
- Diesel injection control
- Engine management
- Adaptive suspension control
- Vehicle dynamics control
- ### Features and Benefits
- High common-mode voltage range: -8 V to
- +28 V at a 5 V supply voltage
- Operating temperature range:
- -40°C to +125°C
- Supply voltage range: 3.5 V to 12 V
- See data sheet for additional features
- Download AD8202-KGD Data Sheet
- Available As Known Good Die and fully guaranteed to data sheet specifications
AD8202 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
