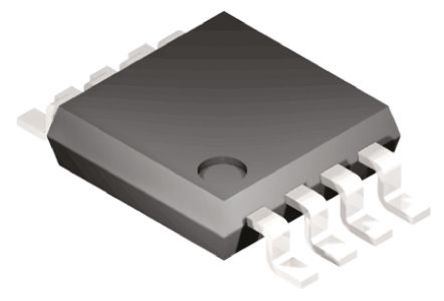

AD8228BRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1024800
Category:
Instrumentation Amplifier IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8228BRMZ Instrument Amplifier, 1 Amplifier, 50μV, 2.5V/µs, 650kHz, ± 2.3V to ± 18V, MSOP
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.12

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8228BRMZ is a high performance Instrumentation Amplifier with very high gain accuracy. Because all gain setting resistors are internal and laser trimmed, gain accuracy and gain drift are better than can be achieved with typical instrumentation amplifiers. Low voltage offset, low offset drift, low gain drift, high gain accuracy and high CMRR make this part an excellent choice in applications that demand the best DC performance possible, such as bridge signal conditioning. The AD8228 operates on both single and dual supplies. Because the part can operate on supplies up to ±18V, it is well suited for applications where high common-mode input voltages are encountered.
Pin strappable gains of 10 and 100
Low noise
Indefinite output short-circuit current

Show

AD8228BRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	850 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	650 kHz
Slew Rate	2.50 V/μs
Gain Bandwidth Product	650 kHz
Input Offset Voltage	50 µV
Input Bias Current	400 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	650 kHz
Gain Bandwidth	100 dB
Minimum CMRR Range	100 dB
Supply Voltage (Max)	30V ~ 50V
Supply Voltage (Min)	2.3 V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
