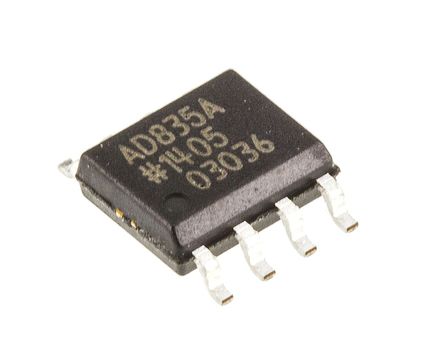

AD835ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC118545
Category:
Power Monitor
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Divider/Multiplier IC, 3A, 250MHz, 1000V/µs slew, 4.5V to 5.5V supply, SOIC-8
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 37.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD835ARZ is a complete 4-quadrant, voltage output Analogue Multiplier, fabricated on an advanced dielectrically isolated complementary bipolar process. It generates the linear product of its X and Y voltage inputs with a -3dB output bandwidth of 250MHz (a small signal rise time of 1ns). Full-scale (-1 to +1V) rise to fall times are 2.5ns (with a standard RL of 150R) and the settling time to 0.1% under the same conditions is typically 20ns. Its differential multiplication inputs (X, Y) and its summing input (Z) are at high impedance. The low impedance output voltage (W) can provide up to ±2.5V and drive loads as low as 25R. Normal operation is from ±5V supplies.
Simple to use and versatile
Simple basic function is W=XY + Z
Complete minimal external components required
Very fast settles to 0.1% of full scale (FS) in 20ns
DC-coupled voltage output simplifies use
50nV/√Hz Low multiplier noise
Product features patented or proprietary protection circuitry, damage may occur on devices subjected to high energy ESD.

Show

AD835ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	4.50V (min)
Operating Voltage	4.5VDC ~ 5.5VDC
Output Voltage	2.5 V
Supply Current	16 mA
Number of Circuits	1 Circuit
Number of Channels	5 Channel
Number of Positions	8 Position
Number of Bits	4 Bit
Power Dissipation	300 mW
Bandwidth	250 MHz
Slew Rate	1.00 kV/μs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	250 MHz
Power Dissipation (Max)	300 mW
Supply Voltage	4.5.5.5 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
Input Voltage	1 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
