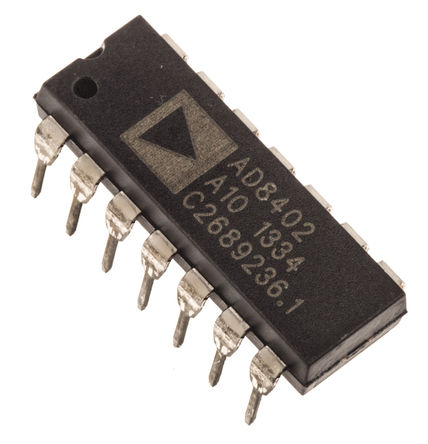

Image is for your reference only,please check specifications for details
- AD8402AN10 - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC11117404
-
Category:Digital Potentiometer IC
-
Package:DIP-14
-
Datasheet:Datasheet 3D Model
-
Description:Digital Potentiometer 10KΩ 256POS Volatile Linear 14Pin PDIP N Tube
-
Stock Locations:
-
Availability:2,139 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.56
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8400/AD8402/AD8403 provide a single, dual or quad channel, 256 position digitally controlled variable resistor (VR) device. These devices perform the same electronic adjustment function as a potentiometer or variable resistor. The AD8400 contains a single variable resistor in the compact SO-8 package. The AD8402 contains two independent variable resistors in saving SO-14 surface mount package. The AD8403 contains four independent variable resistors in 24-lead PDIP, SOIC and TSSOP packages. Each part contains a fixed resistor with a wiper contact that taps the fixed resistor value at a point determined by a digital code loaded into the controlling serial input register. The resistance between the wiper and either endpoint of the fixed resistor varies linearly with respect to the digital code transferred into the VR latch. Each variable resistor offers a completely programmable value of resistance, between the A terminal and the wiper or the B terminal and the wiper. The fixed A to B terminal resistance of 1 kOhm, 10 kOhm, 50 kOhm or 100 kOhm has a ±1% channel-to-channel matching tolerance with a nominal temperature coefficient of 500 ppm/°C. A unique switching circuit minimizes the high glitch inherent in traditional switched resistor designs avoiding any make-before-break or break-before-make operation.
- Each VR has its own VR latch that holds its programmed resistance value. These VR latches are updated from an SPI compatible serial-to-parallel shift register that is loaded from a standard 3-wire serial-input digital interface. Ten data bits make up the data word clocked into the serial input register. The data word is decoded where the first two bits determine the address of the VR latch to be loaded, the last eight bits are data. A serial data output pin at the opposite end of the serial register allows simple daisy-chaining in multiple VR applications without additional external decoding logic.
- ### Features and Benefits
- 256-Position
- Replaces 1,2 or 4 Potentiometers
- 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ
- Power Shutdown - Less than 5 µA
- 3-Wire SPI-Compatible Serial
- Data Input
- 10 MHz Update Data Loading Rate
- 2.7 V to 5.5 V Single-Supply Operation
- Midscale Preset
AD8402AN10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 2.70V (min) |
| Capacitance Tolerance | ±20 % |
| Supply Current | 0.9 mA |
| Number of Circuits | 2 Circuit |
| Number of Positions | 256 Position |
| Resistance | 10 kΩ |
| Resistance Tolerance | ±20 % |
| Quiescent Current | 10.0 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 19.05 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Temperature Coefficient | ±500 ppm/℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
