AD8479ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC219228
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8479ARZ Differential Amplifier, High Common-Mode Voltage, 1 Amplifiers, 500mV, 130kHz, -40℃, 85℃
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

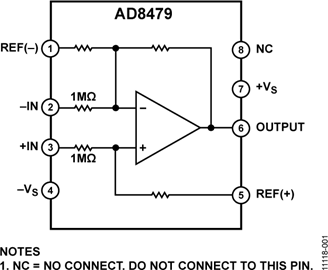

The AD8479ARZ is a Difference Amplifier with a very high input common-mode voltage range. The AD8479 is a precision device that allows the user to accurately measure differential signals in the presence of high common-mode voltages up to ±600V. The AD8479 can replace costly isolation amplifier in applications that do not require galvanic isolation. The device operates over a ±600V common-mode voltage range and has inputs that are protected from common-mode or differential mode transients up to ±600V. The AD8479 has low offset voltage, low offset voltage drift, low gain drift, low common-mode rejection drift and excellent common-mode rejection ratio (CMRR) over a wide frequency range.
Rail-to-rail output
High accuracy DC performance
Indefinite output short-circuit duration
±600V Common-mode voltage range

Show

AD8479ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	10 A
Supply Current	550 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	80 dB
Bandwidth	130 kHz
Slew Rate	7.50 V/μs
Gain Bandwidth Product	130 MHz
Input Offset Voltage	500 mV
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	130 KHz
Minimum CMRR Range	80 dB
Supply Voltage (Max)	30V ~ 50V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
