- AD9706BCPZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC187704
-
Category:Digital to Analog, DAC IC
-
Package:LFCSP-32
-
Datasheet:Datasheet 3D Model
-
Description:Digital to Analog Converter, 12Bit, 175MSPS, Parallel, 1.7V to 3.6V, LFCSP, 32Pins
-
Stock Locations:
-
Availability:261 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.97
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

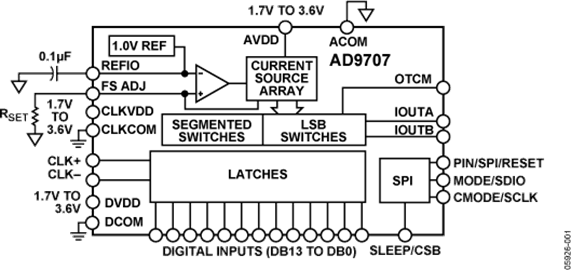

- Product Details
- The AD9704/AD9705/AD9706/AD9707 are the fourth-generation family in the TxDAC series of high performance, CMOS digital-to-analog converters (DACs). This pin-compatible, 8-/10-/12-/14-bit resolution family is optimized for low power operation, while maintaining excellent dynamic performance. The AD9704/AD9705/AD9706/AD9707 family is pin-compatible with the AD9748/AD9740/AD9742/AD9744 family of TxDAC converters and is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface, LFCSP_VQ package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9704/AD9705/AD9706/AD9707 offers exceptional ac and dc performance, while supporting update rates up to 175 MSPS.
- The flexible power supply operating range of 1.7 V to 3.6 V and low power dissipation of the AD9704/AD9705/AD9706/AD9707 parts make them well suited for portable and low power applications.
- Power dissipation of the AD9704/AD9705/AD9706/AD9707 can be reduced to 15 mW, with a small trade-off in performance, by lowering the full-scale current output. In addition, a power-down mode reduces the standby power dissipation to approximately 2.2 mW.
- The AD9704/AD9705/AD9706/AD9707 has an optional serial peripheral interface (SPI®) that provides a higher level of programmability to enhance performance of the DAC. An adjustable output, common-mode feature allows for easy interfacing to other components that require common modes from 0 V to 1.2 V.
- Edge-triggered input latches and a 1.0 V temperature-compensated band gap reference have been integrated to provide a complete, monolithic DAC solution. The digital inputs support 1.8 V and 3.3 V CMOS logic families.
- **Product Highlights**
- 1. Pin Compatible. The AD9704/AD9705/AD9706/AD9707 line of TxDAC® converters is pin-compatible with theAD9748/AD9740/AD9742/AD9744 TxDAC line (LFCSP_VQ package).
- 2. Low Power. Complete CMOS DAC operates on a single supply of 3.6 V down to 1.7 V, consuming 50 mW (3.3 V)and 12 mW (1.8 V). The DAC full-scale current can be reduced for lower power operation. Sleep and power-down modes are provided for low power idle periods.
- 3. Self-Calibration. Self-calibration enables true 14-bit INL and DNL performance in the AD9707.
- 4. Twos Complement/Binary Data Coding Support. Data input supports twos complement or straight binary data coding.
- 5. Flexible Clock Input. A selectable high speed, single-ended,and differential CMOS clock input supports 175 MSPS conversion rate.
- 6. Device Configuration. Device can be configured through pin strapping, and SPI control offers a higher level of programmability.
- 7. Easy Interfacing to Other Components. Adjustable common-mode output allows for easy interfacing to other signal chain components that accept common-mode levels from 0 V to 1.2 V.
- 8. On-Chip Voltage Reference. The AD9704/AD9705/AD9706/AD9707 include a 1.0 V temperature-compensated band gap voltage reference.
- 9. Industry-Standard 32-Lead LFCSP_VQ Package.
- ### Features and Benefits
- 175 MSPS update rate
- Low power member of pin-compatible
- TxDAC product family
- Low power dissipation
- 12 mW at 80 MSPS, 1.8 V
- 50 mW at 175 MSPS, 3.3 V
- Wide supply voltage: 1.7 V to 3.6 V
- Adjustable full-scale current outputs: 1 mA to 5 mA
- On-chip 1.0 V reference
- CMOS-compatible digital interface
- Common-mode output: adjustable 0 V to 1.2 V
- Power-down mode <2 mW at 3.3 V (SPI controllable)
- Self-calibration
- Compact 32-lead LFCSP_VQ, RoHS compliant package
AD9706BCPZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LFCSP-32 |
| Supply Voltage (DC) | 3.60V (max) |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 32 Position |
| Number of Bits | 12 Bit |
| Power Dissipation | 57 mW |
| Sample Rate | 175 Msps |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 57 mW |
| Number of DACs | 1 DAC |
| Supply Voltage | 1.7V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 1.7 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| Mil-Spec | No |
| ECCN Code | EAR99 |
| HK STC License | NLR |
