AD9763ASTZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC373083
Category:
Digital to Analog, DAC IC
Package:
LQFP-48
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD9763ASTZ Digital to Analog Converter, 10Bit, 125MSPS, Parallel, 3V to 5.5V, LQFP, 48Pins
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.91

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

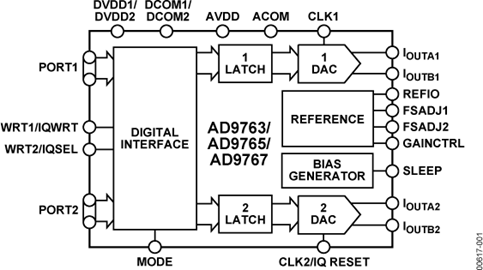

The AD9763ASTZ is a dual-port high speed 2-channel 10-bit CMOS Digital-to-analog Converter (DAC) integrates two high quality TxDAC+® cores, a voltage reference. The AD9763 offers exceptional AC and DC performance while supporting update rates of up to 125MSPS. The AD9763 has been optimized for processing I and Q data in communications applications. The digital interface consists of two double-buffered latches as well as control logic. Separate write inputs allow data to be written to the two DAC ports independent of one another. Separate clocks control the update rate of the DAC. A mode control pin allows the AD9763 to interface to two separate data ports or to a single interleaved high speed data port. In interleaving mode, the input data stream is demuxed into its original I and Q data and then latched. The I and Q data is then converted by the two DAC and updated at half the input data rate. The GAINCTRL pin allows two modes for setting the full-scale current of the two DACs.
Excellent SFDR to Nyquist at 5MHz output - 75dBc
Excellent gain and offset matching - 0.1%
Fully independent or single-resistor gain control
Dual-port or interleaved data

Show

AD9763ASTZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	LQFP-48
Supply Voltage (DC)	5.50V (max)
Number of Outputs	2 Output
Supply Current	71.0 mA
Number of Channels	2 Channel
Number of Positions	48 Position
Number of Bits	10 Bit
Power Dissipation	450 mW
Sample Rate	125 Msps
Resolution (Bits)	10.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	450 mW
Number of DACs	2 DAC
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
