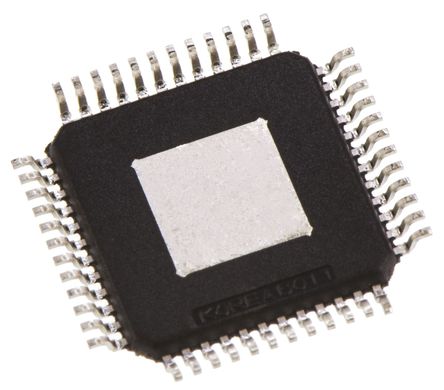

- AD9954YSVZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC287340
-
Category:Voltage Reference
-
Package:TQFP-48
-
Datasheet:Datasheet 3D Model
-
Description:Direct Digital Synthesizer 400MHz 1DAC 14Bit Serial 48Pin TQFP EP Tray
-
Stock Locations:
-
Availability:263 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 116.79
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The AD9954YSVZ is a 400MSPS 1.8V CMOS Direct Digital Synthesizer that uses advanced technology coupled with an internal high speed, high performance DAC to form a complete, digitally programmable and high frequency synthesizer capable of generating a frequency-agile analogue output sinusoidal waveform at up to 160MHz. The AD9954 enables fast frequency hopping coupled with fine tuning of both frequency (0.01Hz or better) and phase (0.022° granularity). It is programmed via a high speed serial I/O port. The device includes static RAM to support flexible frequency sweep capability in several modes plus a user-defined linear sweep mode of operation. An on-chip high speed comparator is also included for applications requiring a square wave output. An on-chip oscillator and PLL circuitry provide users with multiple approaches to generate the device"s system clock.
- 400MSPS Internal clock speed
- Integrated 14-bit DAC
- Programmable phase/amplitude dithering
- 32-bit Frequency tuning accuracy
- 14-bit Phase tuning accuracy
- Excellent dynamic performance
- >80dB Narrowband SFDR
- Serial I/O control
- Ultrahigh speed analogue comparator
- Automatic linear and nonlinear frequency sweeping
- 4 Frequency/phase offset profiles
- Software and hardware controlled power-down
- Support for 5V input levels on most digital inputs
- PLL-based REFCLK multiplier
- Internal oscillator, can be driven by a single crystal
- Phase modulation capability
- Multichip synchronization
- ESD sensitive device, take proper precaution while handling the device.
AD9954YSVZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TQFP-48 |
| Frequency | 400 MHz |
| Supply Voltage (DC) | 1.80 V |
| Number of Outputs | 1 Output |
| Output Current | 10 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 14 Bit |
| Power Dissipation | 220 mW |
| Data Rate | 25.0 Mbps |
| Sample Rate | 400 MHz |
| Power Consumption | 198 mW |
| Resolution (Bits) | 14.0 Bit |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of DACs | 1 DAC |
| Supply Voltage | 1.71V ~ 1.96V |
| Supply Voltage (Max) | 1.89 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
