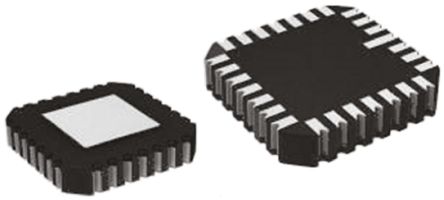

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

GENERAL DESCRIPTION
The ADG506A and ADG507A are CMOS monolithic analog multiplexers with 16 channels and dual 8 channels, respectively. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic compatible digital inputs.
PRODUCT HIGHLIGHTS
1\. Single/Dual Supply Specifications with a Wide Tolerance
The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
2\. Extended Signal Range
The enhanced LC2MOS processing results in a high break down and an increased analog signal range of VSS to VDD.
3\. Break-Before-Make Switching
Switches are guaranteed break-before-make so input signals are protected against momentary shorting.
4\. Low Leakage
Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
FEATURES
44 V Supply Maximum Rating
VSS to VDD Analog Signal Range
Single/Dual Supply Specifications
Wide Supply Ranges (10.8 V to 16.5 V)
Extended Plastic Temperature Range (–408C to +858C)
Low Power Dissipation (28 mW max)
Low Leakage (20 pA typ)
Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages
Superior Alternative to:
DG506A, Hl-506
DG507A, Hl-507
