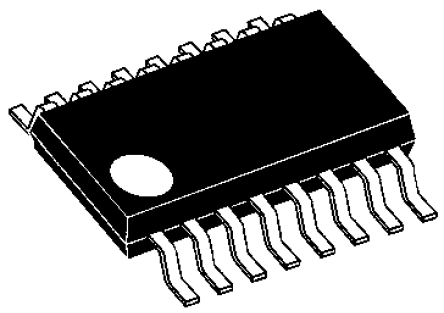

ADG774BRQZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC394569
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
QSOP-16
Datasheet:
Datasheet 3D Model
Description:
Analog Multiplexer, 2:1, 4Circuits, 2.2Ω, 1µA, 2.97V to 3.63V, 4.5V to 5.5V, QSOP-16
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The ADG774 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation yet gives high switching speed and low on resistance. The on-resistance variation is typically less than 0.5 Ω with an input signal ranging from 0 V to 5 V. The bandwidth of the ADG774 is greater than 200 MHz and this, coupled with low distortion (typically 0.5%), makes the part suitable for switching fast ethernet signals. The on-resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. Fast switching speed, coupled with high signal bandwidth, also makes the parts suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the parts ideally suited for portable and battery powered instruments.
### Features and Benefits
Low Insertion Loss and On Resistance: 2.2 O Typical
On-Resistance Flatness <2 O
Bandwidth >200 MHz
Single 3 V/5 V Supply Operation
Rail-to-Rail Operation
Very Low Distortion: <1O
Low Quiescent Supply Current
(100 nA Typical)
Fast Switching Times
tON 10 ns
tOFF 4 ns
TTL/CMOS Compatible

Show

ADG774BRQZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	QSOP-16
Number of Outputs	4 Output
Contacts Type	DPST
Supply Current	1 nA
Number of Circuits	4 Circuit
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	0.566 W
Bandwidth	240 MHz
Number of Inputs	8 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	240 MHz
Power Dissipation (Max)	566 mW
Supply Voltage	1.8V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	0 V
	Show
Size-Length	5 mm
Size-Width	3.91 mm
Size-Height	1.65 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
