ADG836YRMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC683604
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
MSOP-10
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADG836YRMZ Analog Switch, Dual Channel, SPDT, 2Channels, 0.65Ω, 1.65V to 3.6V, MSOP, 10Pins
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.28

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The ADG836 is a low voltage complementary metal-oxide semiconductor (CMOS) device containing two independently selectable single-pole, double-throw (SPDT) switches. This device offers an ultralow on resistance of less than 0.8 Ω over the full temperature range. The ADG836 is fully specified for 3.3 V, 2.5 V, and 1.8 V supply operation.
Each switch conducts equally well in both directions when on, and has an input signal range that extends to the supplies. The ADG836 exhibits break-before-make switching action.

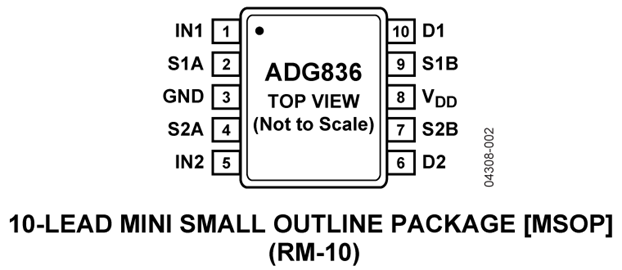

The ADG836 is available in a 10-lead MSOP and in a 3 mm × 3 mm 12-lead LFCSP.
**Product Highlights**
1. <0.8 Ω over full temperature range of –40°C to +125°C.
2. Single 1.65 V to 3.6 V operation.
3. Compatible with 1.8 V CMOS logic.
4. High current handling capability (300 mA continuous current at 3.3 V).
5. Low total harmonic distortion plus noise (THD + N) (0.02% typical).
6. 3 mm × 3 mm LFCSP and 10-lead MSOP.
**Applications**
Cellular phones
PDAs
MP3 players
Power routing
Battery-powered systems
PCMCIA cards
Modems
Audio and video signal routing
Communication systems
### Features and Benefits
0.5 Ω typical on resistance
0.8 Ω maximum on resistance at 125°C
1.65 V to 3.6 V operation
Automotive temperature range: –40°C to +125°C
High current carrying capability: 300 mA continuous
Rail-to-rail switching operation
Fast-switching times <20 ns
Typical power consumption (<0.1 µW)

Show

ADG836YRMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	MSOP-10
Number of Outputs	4 Output
Contacts Type	SPDT
Supply Current	3 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Bits	2 Bit
Power Dissipation	0.0000001 W
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	57 MHz
Supply Voltage	1.65V ~ 3.6V
Supply Voltage (Max)	3.6 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
