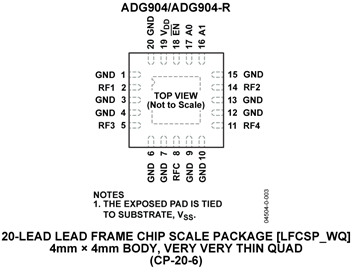

Image is for your reference only,please check specifications for details

ADG904BRUZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC296604
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Amplifiers; Wideband 2.5GHz, 37dB Isolation AT 1GHz, CMOS 1.65V TO 2.75V
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.68

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADG904 series 4:1 wideband Analog Multiplexer that use a CMOS process to provide high isolation and low insertion loss to 1GHz. The ADG904 is an absorptive/matched mux with 50R terminated shunt legs, the ADG904-R is a reflective mux. This device is designed such that the isolation is high over the DC to 1GHz frequency range. The ADG904 switch one of four inputs to a common output, RFC, as determined by the 3-bit binary address lines A0, A1 and EN. A Logic 1 on the EN pin disables the device. The parts have on-board CMOS control logic, which eliminates the need for external control circuitry. The control inputs are both CMOS and LVTTL compatible. The low power consumption of these devices makes them ideally suited for wireless applications and general-purpose high frequency switching.
-3dB at 2.5GHz Wideband switch
High off isolation (37dB at 1GHz)
Low insertion loss (1.1dB DC to 1GHz)
CMOS/LVTTL control logic
Low power consumption (1µA maximum)

Show

ADG904BRUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Frequency	2500 MHz
Number of Outputs	1 Output
Supply Current	100 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	20 Position
Power Dissipation	2.75 µW
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	2.5 GHz
Supply Voltage	1.65V ~ 2.75V
Supply Voltage (Max)	2.75 V
Supply Voltage (Min)	0 V
	Show
Size-Length	6.6 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
