ADIS16364BMLZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC2525675
Category:
Acceleration Sensor, Accelerometer
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES ADIS16364BMLZ MEMS Module, Tri-Axis Gyroscope, Tri-Axis Accelerometer, 4.75V, 5.25V, Module, 24Pins
Stock Locations:
Availability:
276 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1203.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

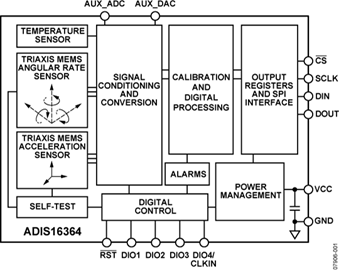

The ADIS16364BMLZ is an iSensor® Inertial System that includes a 3-axis gyroscope and triaxis accelerometer. The device combines industry-leading iMEMS® technology with signal conditioning that optimizes dynamic performance. The ADIS16364 provides a simple method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. Tight orthogonal alignment simplifies inertial frame alignment in navigation systems. An improved SPI interface and register structure provide faster data collection and configuration control. The device uses a compatible pin-out and the same package as the ADIS1635x family.
<0.05° Tight orthogonal alignment
330Hz Wide sensor bandwidth
Autonomous operation and data collection no external configuration commands required
180ms Start-up time
4ms Sleep mode recovery
Factory-calibrated sensitivity, bias and axial alignment
-20 to +70°C Calibration temperature range
Embedded temperature sensor
Automatic and manual bias correction controls
Bartlett window FIR filter length, number of taps
Digital I/O - Data-ready, alarm indicator, general-purpose
Alarms for condition monitoring
Sleep mode for power management
Enable external sample clock input up to 1.2kHz
2000g Shock survivability

Show

ADIS16364BMLZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	24 Pin
Supply Voltage (DC)	4.75V (min)
Supply Current	49 mA
Number of Positions	24 Position
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Operating Temperature	-40℃ ~ 105℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	7A994
