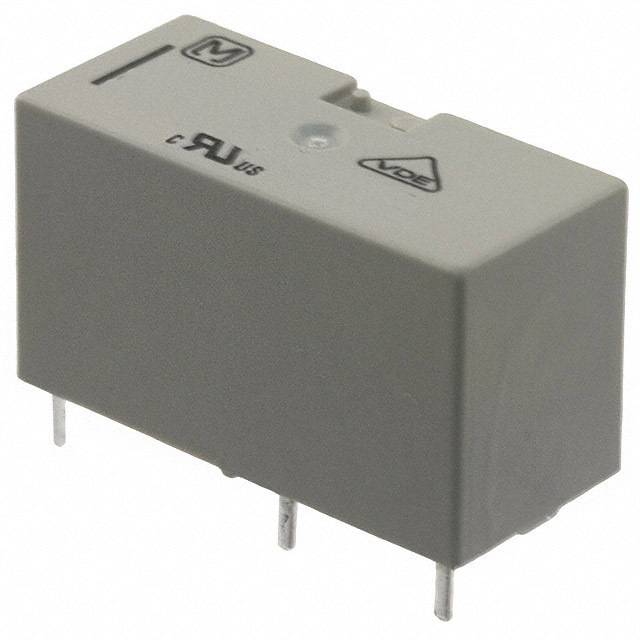

Image is for your reference only,please check specifications for details

Updated at 26/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

FEATURES
1\. Variety of contact arrangements
Wide lineup of 1 Form C, 1 Form A, 1 Form B, 2 Form C, 2 Form A, 2 Form B, 1 Form A 1 Form B.
2\. Latching operation
Latching via a polarized magnetic circuit structure allows remote operation and lower energy consumption
3\. Compact with high capacity
16A (1-pole type) contact rating in a compact 29×13×16.5 mm (L×W×H) size.
4\. Low power consumption
1 coil latching: 150mW
2 coil latching, single side stable: 250mW
5\. High insulation
Both clearance and creepage distance between coil and contact are at 8 mm min.
6\. With operation verification function
A test button (manual lever) type to facilitate circuit checks is also available (1 Form C, 1 Form A, 1 Form B types only).
TYPICAL APPLICATIONS
1\. FA equipment (brake circuits of industrial machine and robots, etc.)
2\. Electric power devices (remote surveillance devices, etc.)
3\. Household appliance networks (Motor control and lighting control, etc.)
4\. Time switches

Show

ADJ22005 Specifications
