Image is for your reference only,please check specifications for details

ADM00352 - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC27486638
Category:
Microprocessor Primary Platform
Package:
-
Datasheet:
Datasheet 3D Model
Description:

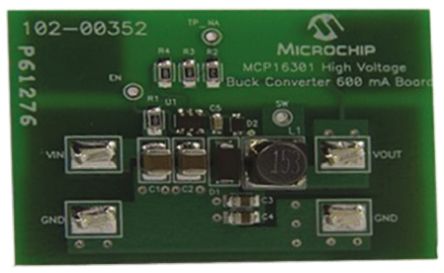

MICROCHIP ADM00352 Demonstration Board for High Voltage Buck Converter 600mA, Step Down DC to DC Converter
Stock Locations:
Availability:
229 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 26.2

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM00352 is a MCP16301 high voltage buck converter 600mA demo board. Which is highly integrated, high efficiency,fixed frequency, step down DC to DC converter in a popular 6 pin SOT 23 package that operates from input voltage sources up to 30V. Integrated features include a high side switch, fixed frequency peak current mode control, internal compensation, peak current limit and overtemperature protection. Minimal external components are necessary to develop a complete step down DC to DC converter power supply. High converter efficiency is achieved by integrating the current limited, low resistance, high speed N-Channel MOSFET and associated drive circuitry. High switching frequency minimizes the size of external filtering components, resulting in a small solution size. The MCP16301 can supply 600mA of continuous current while regulating the output voltage from 2.0V to 15V. An integrated, high performance peak current mode architecture keeps the output voltage tightly regulated.
Output voltage set to 3.3V
600mA output current
Input voltage range 4V to 30V with 40V transients
EN input test point
500KHz fixed frequency
Adjustable output voltage
Low device shutdown current
Cycle by cycle peak current limit
Up to 96% typical efficiency
Over temperature protection

Show

ADM00352 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Case/Package	-
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	600 mA
Switching Frequency	500 kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4V ~ 30V
	Show
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8542330001
ECCN Code	EAR99
