Description

Product Details

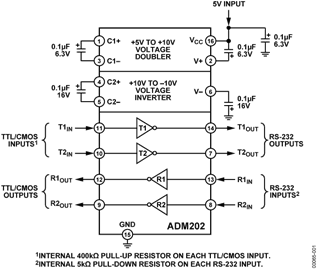

The ADM202 is a 2-channel RS-232 line driver/receiver pair designed to operate from a single 5 V power supply. A highly efficient on-chip charge pump design permits RS-232 levels to be developed using charge pump capacitors as small as 0.1 µF. This converter generates ±10 V RS-232 output levels.
The ADM202 meets or exceeds the TIA/EIA-232-E and V.28 specifications. Fast driver slew rates permit 120 kB operation, and high drive currents allow extended cable lengths.
An epitaxial BiCMOS construction minimizes power consumption to 10 mW and guards against latch-up. Overvoltage protection is provided, allowing the receiver inputs to withstand continuous voltages in excess of ±30 V. In addition, all pins contain ESD protection to levels greater than 2 kV.
The ADM202 is available in a 16-lead PDIP and both narrow and wide 16-lead SOIC packages.
**Applications**
Computers
Peripherals
Modems
Printers
Instruments
### Features and Benefits
120 kB transmission rate
Small (0.1 µF) charge pump capacitors
Single 5 V power supply
Meets TIA/EIA-232-E and V.28 specifications
2 drivers and 2 receivers
On-board dc-to-dc converters
±9 V output swing with 5 V supply
Low power BiCMOS: 2.5 mA ICC
±30 V receiver input levels

Show

ADM202 Specifications
