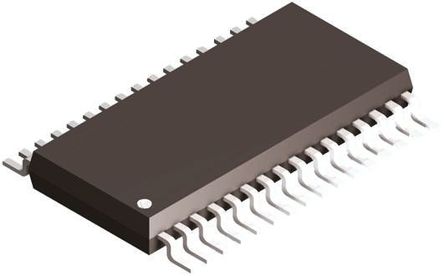

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADM2209EARUZ is a complete dual RS-232 Port on a single chip, containing six drivers and ten receivers and fully meeting EIA-232 and V.28 specifications. The device features an onboard DC-to-DC converter to generate a -12V power rail, eliminating the need for a negative power supply. The ADM2209E is suitable for operation in harsh electrical environments and is compliant with the EU directive on EMC. Both the level of emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15kV on all I-O lines, electrical fast transient protection and radiated immunity. The ADM2209E conforms to the EIA-232E and CCITT V.28 specifications and operates at data rates up to 460kbps. In standby mode, one receiver on each port (R5) remains active to allow monitoring of peripheral devices while the rest of the system is in power-saving mode. This feature allows the ADM2209E to wake up the system when a peripheral device begins communication.
<5mA Low power CMOS operation
0.1µF Charge pump capacitors
One receiver on each port active in standby
ESD protection to IEC1000-4-2
Electrical fast transient (EFT) immunity
Low EMI emissions
Eliminates costly TransZorbs®
Fail-safe receiver outputs

Show

ADM2209EARUZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package (SI)	SOP
Case/Package	TSSOP-38
Supply Voltage (DC)	10.8V (min)
Supply Current	5 mA
Number of Positions	38 Position
Data Rate	460 kbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	10.8V ~ 13.2V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	10.8 V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
