5kV Signal Isolated, High Speed (16Mbps), ESD Protected, Full/Half Duplex RS-485 Transceiver
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0
Updated at 19/05/2024 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
Product Details
The ADM2491E is an isolated data transceiver with ±8 kV ESD protection and is suitable for high speed, half- or full-duplex communication on multipoint transmission lines. For half-duplex operation, the transmitter outputs and the receiver inputs share the same transmission line. Transmitter output Pin Y is linked externally to receiver input Pin A, and transmitter output Pin Z to receiver input Pin B.

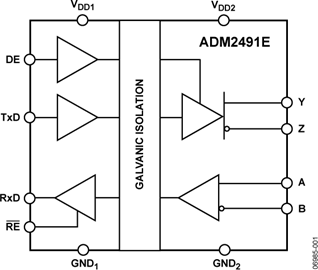

The ADM2491E is designed for balanced transmission lines and complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482: 1987(E). The device employs Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a threestate differential line driver, and a differential input receiver into a single package
The differential transmitter outputs and receiver inputs feature electrostatic discharge circuitry that provides protection to ±8 kV using the human body model (HBM). The logic side of the device can be powered with either a 5 V or a 3.3 V supply, whereas the bus side requires an isolated 5 V supply.
The device has current-limiting and thermal shutdown features to protect against output short circuits and situations where bus contention could cause excessive power dissipation.
The ADM2491E is available in a wide body, 16-lead SOIC package and operates over the −40°C to +85°C temperature range.
Applications
Isolated RS-485/RS-422 interfaces
Industrial field networks
INTERBUS
Multipoint data transmission systems
### Features and Benefits
Isolated, RS-485/RS-422 transceiver, configurable as half- or full-duplex
±8 kV ESD protection on RS-485 input/output pins
16 Mbps data rate
Complies with ANSI TIA/EIA RS-485-A-1998 and ISO 8482: 1987(E)
Suitable for 5 V or 3.3 V operation (VDD1)
High common-mode transient immunity: >25 kV/µs
Receiver has open-circuit, fail-safe design
32 nodes on the bus
Thermal shutdown protection
Safety and regulatory approvals
UL recognition: 5000 V rms isolation voltage for 1 minute, per UL 1577
