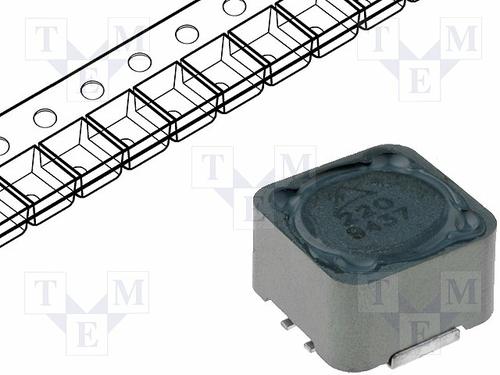

Image is for your reference only,please check specifications for details

B82477G4223M - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC14095423
Category:
Inductor
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
Inductor Power Shielded Wirewound 22uH 20% 100kHz Ferrite 3.6A 38mOhm DCR T/R
Stock Locations:
Availability:
10,859 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.65

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

B82477G4223M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	Non Standard
Current Rating	3.6 A
Capacitance Tolerance	±20 %
Inductance	22 µH
Resistance	38 mΩ
Inductance Tolerance	±20 %
Test Frequency	100 kHz
DC Resistance (DCR)	≤38 mΩ
Current Rating (DC)	3.6 A
Resistance (DC Max)	0.038 Ω
	Show
Size-Length	12.8 mm
Size-Width	12.8 mm
Size-Height	8 mm
Operating Temperature	-55℃ ~ 125℃
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
