Description

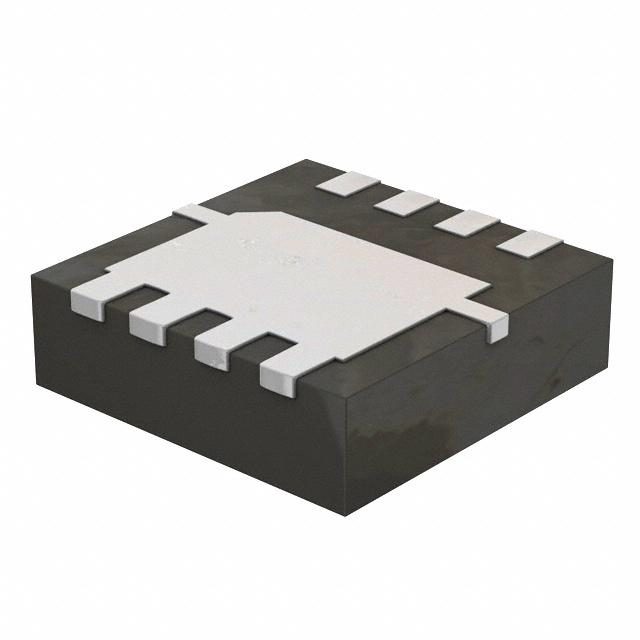

The CSD25402Q3A is a NexFET™ P-channel Power MOSFET designed to minimize losses in power conversion load management applications. It has a 3.3 × 3.3mm package that offers an excellent thermal performance for the size of the device.
Ultra-low Qg and Qgd
Low thermal resistance
Low RDS (ON)
Halogen-free
Plastic package
-55 to 150°C Operating junction temperature range

Show

CSD25402Q3A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-8
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.0077 Ω
Polarity	P-Channel
Power Dissipation	69 W
Threshold Voltage	900 mV
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	35A
Rise Time	7 ns
Input Capacitance (Ciss)	1790pF @10V(Vds)
Input Power (Max)	2.8 W
Fall Time	12 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.8W (Ta), 69W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
