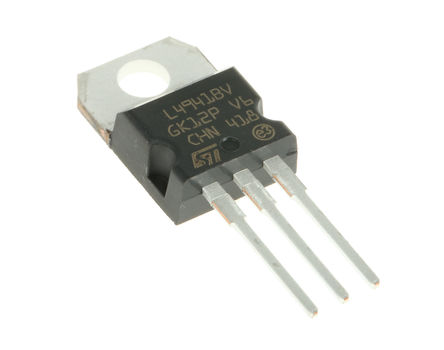

Image is for your reference only,please check specifications for details

L4941BV - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3244333
Category:
Voltage Regulator
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS L4941BV Fixed LDO Voltage Regulator, 7V to 16V, 450mV Dropout, 5Vout, 1Aout, TO-220-3
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.72

Updated at 23/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L4941BV is a 3-terminal very low drop Positive Regulator features thermal shutdown and short-circuit protection. This device is particularly suitable for battery-powered equipment, reducing consumption and prolonging battery-life. It employs internal current limiting, anti-saturation circuit, thermal shut-down and safe area protection.
Very low quiescent current
Reverse polarity protection

Show

L4941BV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Supply Voltage (DC)	30.0V (max)
Operating Voltage	6V ~ 16V
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	1 A
Number of Positions	3 Position
Quiescent Current	4 mA
voltage rating	450 mV
Input Voltage (Max)	16 V
Input Voltage (Min)	7 V
Output Current (Max)	1 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±4 %
Input Voltage	≤16 V
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
