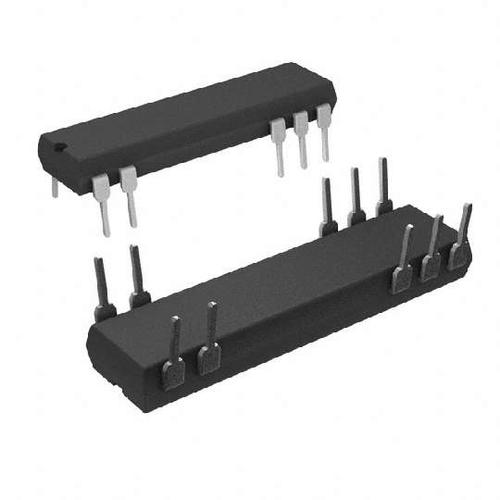

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DCR02 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 2−W nominal, galvanically-isolated output power capability, this range of converters offers very low output noise and high accuracy.
- The DCR02 family is implemented in standard molded device packaging, providing standard JEDEC outlines suitable for high-volume assembly.
- The DCR02 family is manufactured using the same technology as standard device packages, thereby achieving very high reliability.
DCR021205P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 10 Pin |
| Case/Package | DIP-18 |
| Frequency | 800 kHz |
| Power Rating | 2 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 12.0 V |
| Output Voltage | 5 V |
| Output Current | 400 mA |
| Quiescent Current | 15.0 mA |
| Number of Regulated Outputs | 1 Output |
| Output Power | 2 W |
| Isolation Voltage | 1 kV |
| Switching Frequency | 400 kHz |
| Input Voltage (Max) | 13.2 V |
| Input Voltage (Min) | 10.8 V |
| Output Current (Max) | 400 mA |
| Input Power (Max) | 2 W |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 10.8V ~ 13.2V |
| Show | |
| Size-Length | 22.4 mm |
| Size-Width | 6.10 mm |
| Size-Height | 3.94 mm |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
