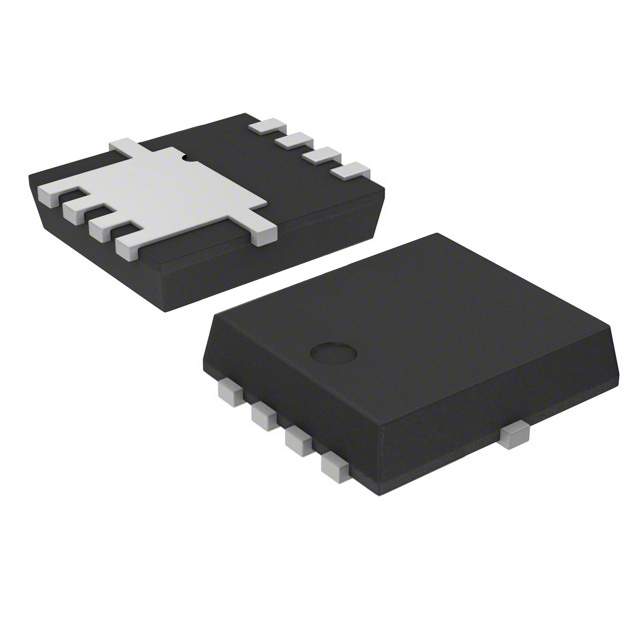

Image is for your reference only,please check specifications for details
- ST1S41PUR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC44854282
-
Category:DC to DC Converter
-
Package:VFQFPN-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4V to 18V Step Down Single-Out 0.8V to 18V 4A 8Pin VFQFPN EP T/R
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.86
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down ST1S41PUR DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 4 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 4 V that does not exceed 18 V. With an adjustable output that has a voltage of 0.8 to 18 V, this is power management at its best. A load regulation of 0.5%(Typ) and line regulation of 0.4%(Typ) is necessary for providing a constant voltage level at your output. You can operate this at a switching frequency of 1000 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has an operating temperature range of -40 °C to 150 °C.
ST1S41PUR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VFQFPN-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 18V |
| Output Current | 4 A |
| Number of Positions | 8 Position |
| Quiescent Current | 2.5 mA |
| Switching Frequency | 850 kHz |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 18 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4 V |
| Input Voltage | 18 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
