Description

GENERAL DESCRIPTION

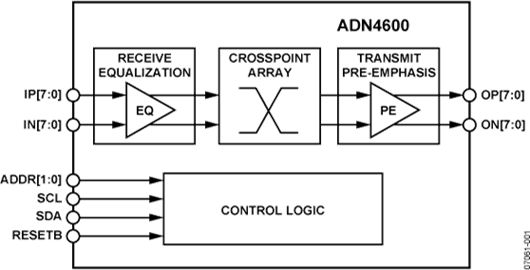

The ADN4600 is an asynchronous, nonblocking crosspoint switch with eight differential PECL-/CML-compatible inputs with programmable equalization and eight differential CML outputs with programmable output levels and pre-emphasis or de-emphasis. The operation of this device is optimized for NRZ data at rates up to 4.25 Gbps.
FEATURES
Full 8 × 8 crossbar connectivity
Fully buffered signal path supports multicast and broadcast operation
Optimized for dc to 4.25 Gbps data
Programmable receive equalization
Compensates for up to 30 in. of FR4 @ 4.25 Gbps
Programmable transmit pre-emphasis/de-emphasis
Compensates for up to 30 in. of FR4 @ 4.25 Gbps
Flexible 1.8 V to 3.3 V core supply
Per lane positive/negative (P/N) pair inversion for routing ease
Low power: 125 mW/channel at 4.25 Gbps
DC- or ac-coupled differential CML inputs
Programmable CML output levels
50 Ω on-chip termination
−40°C to +85°C temperature range operation
Supports 8b10b, scrambled or uncoded nonreturn-to-zero (NRZ) data
I2C control interface
Package: 64-lead LFCSP
APPLICATIONS
1×, 2×, 4× Fibre Channel XAUI
Gigabit Ethernet over backplane 10GBase-CX4
InfiniBand® 50 Ω cables

Show

ADN4600ACPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LFCSP-64
Supply Voltage (DC)	1.70V (min)
Supply Current	460 mA
Number of Positions	64 Position
Power Dissipation	125 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.7V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	9.1 mm
Size-Width	9.1 mm
Size-Height	0.83 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	5A991.b.1
