Description
- Product Details

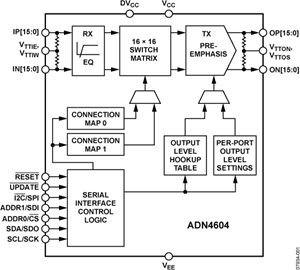

- The ADN4604 is a 16 × 16 asynchronous, protocol agnostic, digital crosspoint switch, with 16 differential PECL-/CML-compatible inputs and 16 differential CML outputs.
- The ADN4604 is optimized for nonreturn-to-zero (NRZ) signaling with data rates of up to 4.25 Gbps per port. Each port offers a fixed level of input equalization and programmable output swing and output preemphasis.
- The ADN4604 nonblocking switch core implements a 16 × 16 crossbar and supports independent channel switching through the serial control interface. The ADN4604 has low latency and very low channel-to-channel skew.
- An I2C® or SPI interface is used to control the device and provide access to advanced features, such as additional levels of preemphasis and output disable.
- The ADN4604 is packaged in a 100-lead TQFP package and operates from −40°C to +85°C.
- **Applications**
- * Fiber optic network switching
- * High speed serial backplane routing to OC-48 with FEC
- * XAUI: 10GBASE-KX4
- * Gigabit Ethernet over backplane: 1000BASE-KX
- * 1×, 2×, and 4× Fibre Channel
- * InfiniBand®
- * Digital video (HDMI, DVI, DisplayPort, 3G-/HD-/SD-SDI)
- * Data storage networks
- ### Features and Benefits
- DC to 4.25 Gbps per port NRZ data rate
- Programmable receive equalization
- Programmable transmit preemphasis/deemphasis
- Low power: 130 mW per channel at 3.3 V (outputs enabled)
- 16 × 16, fully differential, nonblocking array
- Low jitter, typically 20 ps
- Flexible I/O supply range
- DC- or ac-coupled differential CML inputs
- Programmable CML output levels
- Per-lane input P/N pair inversion for routing ease
- 50 Ω on-chip I/O termination
- Supports 8b/10b, scrambled or uncoded NRZ data
- See data sheet for additional Features
ADN4604 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
