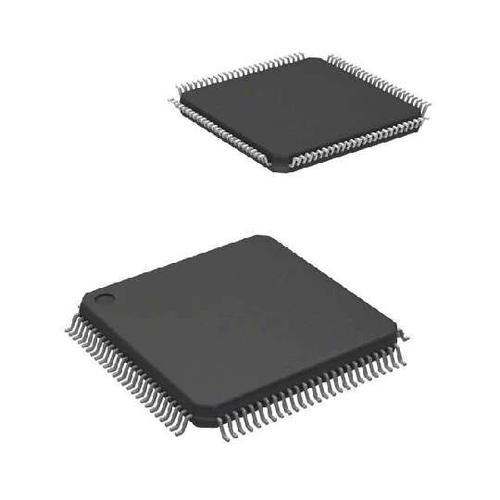

STM32F101VBT6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC1507384
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
Cortex코어, Flash 128KB, RAM 16KB, ADC 12Bit x 16, Timer 16Bit x 3, 24Bit down Counter, SPI x 2, I2C x 2, UART x 3, RTC, WDG x 2 , LQFP100핀 패키지
Stock Locations:
Availability:
78 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.13

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F101VBT6 is a medium density access line STM32 F1 series 32-bit Microcontroller incorporates the high-performance ARM Cortex-M3 RISC core operating at a 36MHz frequency, high speed embedded memories (Flash memory up to 128kB and SRAM up to 16KB) and an extensive range of enhanced peripherals and I/Os connected to two APB buses. This device offer one 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard communication interfaces - up to two I²Cs, two SPIs and three USARTs.
36MHz Maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance
Single cycle multiplication and hardware division
Clock, reset and supply management
POR, PDR and programmable voltage detector (PVD)
4 to 16MHz Crystal oscillator
Internal 8MHz factory trimmed RC
Internal 40kHz RC
PLL for CPU clock
32kHz Oscillator for RTC with calibration
Sleep, stop and standby modes
VBAT supply for RTC and backup registers
Serial wire debug (SWD) and JTAG interfaces
7-channel DMA Controller
2 x Watchdog timers (Independent and window)
SysTick Timer
96-bit Unique ID

Show

STM32F101VBT6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	36 MHz
Supply Voltage (DC)	2.00V (min)
Number of Positions	100 Position
Clock Speed	36 MHz
RAM Memory Size	16 KB
Number of Bits	32 Bit
FLASH Memory Size	128 KB
Number of Inputs and Outputs	80 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1.4 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
