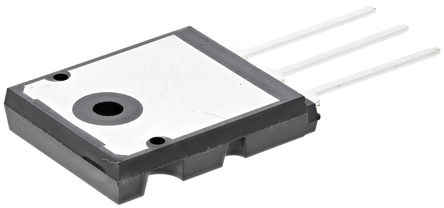

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
Using Fairchild"s proprietary trench design and advanced NPT technology, the 1000V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation. This device offers the optimum performance for hard switching application such as UPS, welder applications.
Features
• High Speed Switching
• Low Saturation Voltage: VCE(sat) = 2.5 V @ IC = 60 A
• High Input Impedance
• Built-in Fast Recovery Diode
Applications
• UPS, Welder

Show

FGL60N100BNTDTU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Voltage Rating (DC)	1.00 kV
Current Rating	60.0 A
Power Dissipation	180 W
Breakdown Voltage (Collector to Emitter)	1000 V
Reverse recovery time	1.2 µs
Input Power (Max)	180 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	180000 mW
	Show
Size-Length	20 mm
Size-Width	5 mm
Size-Height	26 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
