Description
- Product Details

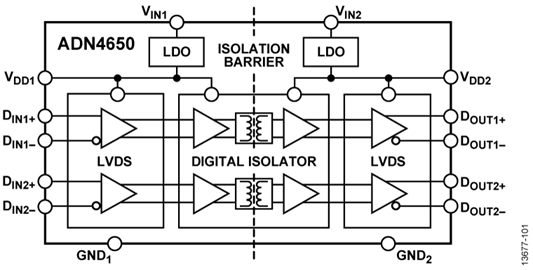

- The ADN4650 is a signal isolated, low voltage differential signaling (LVDS) buffers that operate at up to 600 Mbps with very low jitter.
- The devices integrate Analog Devices, Inc., iCoupler® technology, enhanced for high speed operation, to provide galvanic isolation of the TIA/EIA-644-A compliant LVDS drivers and receivers. This technology allows drop-in isolation of an LVDS signal chain.
- For high speed operation with low jitter, the LVDS and isolator circuits rely on a 2.5 V supply. An integrated on-chip low dropout regulator (LDO) can provide the required 2.5 V from an external 3.3 V power supply. The devices are fully specified over a wide industrial temperature range and are available in a 20-lead, wide body SOIC package with 5 kV rms isolation or a 20-lead SSOP package with 3.75 kV rms isolation.
- **Applications**
- Analog front-end (AFE) isolation
- Data plane isolation
- Isolated high speed clock and data links
- Isolated serial peripheral interface (SPI) over LVDS
- ### Features and Benefits
- 5 kV rms/3.75 kV rms LVDS isolator
- Complies with TIA/EIA-644-A LVDS standard
- Multiple dual-channel configurations
- Up to 600 Mbps switching with low jitter
- 4.5 ns maximum propagation delay
- 151 ps maximum peak-to-peak total jitter at 600 Mbps
- 100 ps maximum pulse skew
- 600 ps maximum part to part skew
- 2.5 V or 3.3 V supplies
- −75 dBc power supply ripple rejection and glitch immunity
- ±8 kV IEC 61000-4-2 ESD protection across isolation barrier
- High common-mode transient immunity: >25 kV/μs
- Passes EN55022 Class B radiated emissions limits with 600 Mbps PRBS
- Safety and regulatory approvals (20-lead SOIC package)
- UL (pending): 5000 V rms for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A (pending)
- VDE certificate of conformity (pending)
- DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
- VIORM = 424 V peak
- Fail-safe output high for open, short, and terminated input conditions (ADN4651/ADN4652)
- Operating temperature range: −40°C to +125°C
- Choice of package and isolation options
- 3.75 kV rms in highly integrated 20-lead SSOP
- 5 kV rms in 20-lead SOIC with 7.8 mm creepage/clearance
ADN4650BRWZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Rise/Fall Time | 350ps, 350ps (Max) |
| Number of Channels | 2 Channel |
| Power Dissipation | 2780 W |
| Isolation Voltage | 5000 Vrms |
| Input Current (Min) | 5 μA |
| Fall Time (Max) | 350 ps |
| Fall Time (Max) | 350 ps |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2780 mW |
| Supply Voltage | 2.375V ~ 2.625V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
