ADP3334 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC480093692
Datasheet:
Datasheet 3D Model
Description:
High Accuracy Low IQ, 500mA anyCAP Adjustable Low Dropout Regulator
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
ADP7104 20 V, 500 mA, Low Noise, CMOS LDO

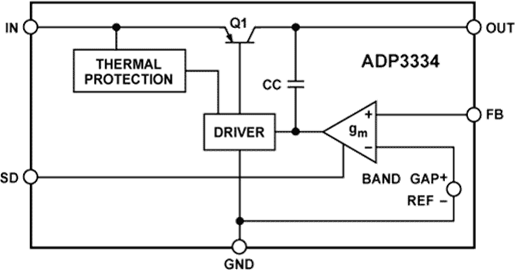

The ADP3334 is a member of the ADP333x family of precision low dropout anyCAP® voltage regulators. The ADP3334 operates with an input voltage range of 2.6 V to 11 V and delivers a continuous load current up to 500 mA. The novel anyCAP® architecture requires only a very small 1 µF output capacitor for stability, and the LDO is insensitive to the capacitor’s equivalent series resistance (ESR). This makes ADP3334 stable with any capacitor, including ceramic (MLCC) types for space restricted applications.
### Features and Benefits
High Accuracy over Line and Load: ±0.9% @ 25°C, ±1.8% over Temperature
500 mA Current Capability
Ultralow Dropout Voltage
Requires Only CO = 1.0 µF for Stability
anyCAP = Stable with Any Type of Capacitor (Including MLCC)
|
Current and Thermal Limiting
Low Noise
Low Shutdown Current: < 1.0 µA (Typ)
2.6 V to 11 V Supply Range
1.5 V to 10 V Output Range
-40°C to +85°C Ambient Temperature Range
---|---
