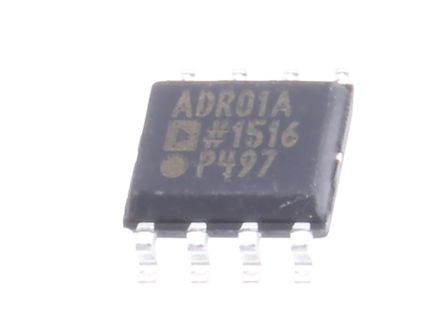

Image is for your reference only,please check specifications for details

ADR01ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC87942
Category:
Voltage Reference
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Analog Devices ADR01ARZ, Fixed Series Voltage Reference 10V, 0.1% 36V max., 8Pin SOIC
Stock Locations:
Availability:
98 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.72

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The ADR01, ADR02, ADR03, and ADR06 are precision 10.0 V, 5.0 V, 2.5 V, and 3.0 V band gap voltage references featuring high accuracy, high stability, and low power consumption. The parts are housed in tiny, 5-lead SC70 and TSOT packages, as well as in 8 lead SOIC versions. The SOIC versions of the ADR01, ADR02, and ADR03 are drop-in replacements1 to the industry-standard REF01, REF02, and REF03. The small footprint and wide operating range make the ADR0x references ideally suited for general-purpose and space-constrained applications.
With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is provided on the devices for fine adjustment of the output voltage.
The ADR01, ADR02, ADR03, and ADR06 are compact, low drift voltage references that provide an extremely stable output voltage from a wide supply voltage range. They are available in 5 lead SC70 and TSOT packages, and 8-lead SOIC packages with A, B, and C grade selections. All parts are specified over the extended industrial (–40°C to +125°C) temperature range. The ADR01, ADR02, ADR03 and ADR06 A grade in 8-lead SOIC are qualified for automotive applications.
**Applications**
Precision data acquisition systems
High resolution converters
Industrial process control systems
Precision instruments
Auto battery monitoring
PCMCIA cards
ADR01/ADR02/ADR03/ADR06 SOIC qualified for automotive applications
1 ADR01, ADR02, and ADR03 are component-level compatible with REF01, REF02, and REF03, respectively. No guarantees for system-level compatibility are implied. SOIC versions of ADR01/ADR02/ADR03 are pin-to-pin compatible with 8-lead SOIC versions of REF01/REF02/REF03, respectively, with the additional temperature monitoring function.
### Features and Benefits
Ultracompact SC70 and TSOT packages
Low temperature coefficient
8-lead SOIC: 3 ppm/°C
5-lead SC70: 9 ppm/°C
5-lead TSOT: 9 ppm/°C
Initial accuracy ±0.1%
No external capacitor required
Low noise 10 μV p-p (0.1 Hz to 10.0 Hz)
Wide operating range - 12.0 V to 36.0 V
High output current 10 mA
Wide temperature range: –40°C to +125°C
ADR01/ADR02/ADR03 pin compatible to industry- standard REF01/REF02/REF03
ADR01/ADR02/ADR03 and ADR06 SOIC qualified for automotive applications
ADR01-EP supports defense and aerospace applications (AQEC standard)
Download ADR01-EP data sheet (pdf)
Military temperate range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request
V62/12658 DSCC Drawing Number

Show

ADR01ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Current Rating	1.00 mA
Capacitance Tolerance	±0.1 %
Input Voltage (DC)	12.0V ~ 36.0V
Output Voltage	10 V
Output Current	10 mA
Supply Current	1 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Voltage (Max)	36 V
Output Voltage (Max)	10.01 V
Output Voltage (Min)	10 V
Output Current (Max)	10 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.1 %
Input Voltage	12V ~ 36V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Temperature Coefficient	±10 ppm/℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
