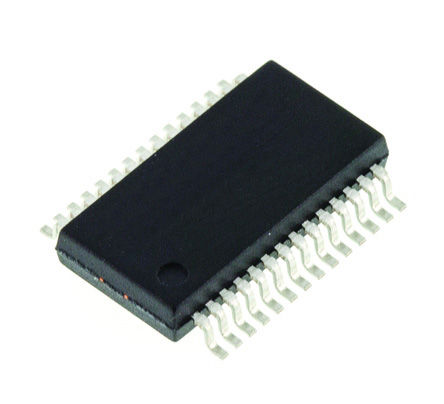

- ADS1211E - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC46518400
-
Category:Analog to Digital, ADC IC
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter 24Bit Analog-to-Digital Converter Quad Channel Single ADC Delta-Sigma 16KSPS 24Bit Serial 28Pin SSOP Tube
-
Stock Locations:
-
Availability:230 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 37.23
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ADS1210 and ADS1211 are precision, wide dynamic range, delta-sigma analog-to-digital converters with 24-bit resolution operating from a single +5V supply. The differential inputs are ideal for direct connection to transducers or low level voltage signals. The delta-sigma architecture is used for wide dynamic range and to guarantee 22 bits of no missing code performance. An effective resolution of 23 bits is achieved through the use of a very low-noise input amplifier at conversion rates up to 10Hz. Effective resolutions of 20 bits can be maintained up to a sample rate of 1kHz through the use of the unique Turbo modulator mode of operation. The dynamic range of the converters is further increased by providing a low-noise programmable gain amplifier with a gain range of 1 to 16 in binary steps.
- The ADS1210 and ADS1211 are designed for high resolution measurement applications in smart transmitters, industrial process control, weigh scales, chromatography and portable instrumentation. Both converters include a flexible synchronous serial interface which is SPI compatible and also offers a two-wire control mode for low cost isolation.
- The ADS1210 is a single channel converter and is offered in both 18-pin DIP and 18-lead SOIC packages. The ADS1211 includes a 4-channel input multiplexer and is available in 24-pin DIP, 24-lead SOIC, and 28-lead SSOP packages.
ADS1211E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 3.50 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 4 Channel |
| Number of Bits | 24 Bit |
| Power Dissipation | 37 mW |
| Sample Rate | 16 ksps |
| Power Consumption | 27.5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 60 mW |
| Number of Input Channels | 4 Channel |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
