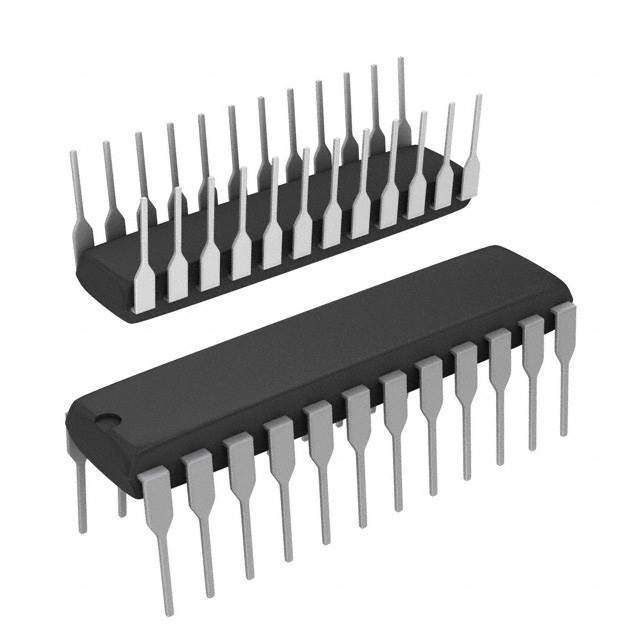

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 22 Bit Analog to Digital Converter 4 Input 1 Sigma-Delta 24-PDIP
ADS1213P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | DIP-24 |
| Supply Voltage (DC) | 4.75V (min) |
| Supply Current | 185 µA |
| Number of Channels | 4 Channel |
| Number of Bits | 22 Bit |
| Power Dissipation | 8.5 mW |
| Sample Rate | 6.25 ksps |
| Power Consumption | 27.5 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Power Dissipation (Max) | 8.5 mW |
| Number of Input Channels | 4 Channel |
| Show | |
| Size-Length | 31.64 mm |
| Size-Width | 6.73 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
