744226 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC6925840
Category:
Inductor Choke
Package:
SMD
Datasheet:
Datasheet 3D Model
Description:

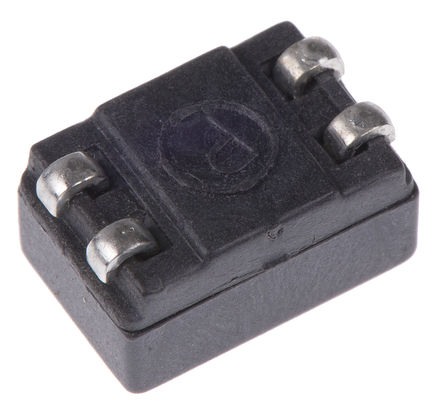

WURTH ELEKTRONIK 744226 Filter, Line, Surface Mount, 10µH, WE-SL2 Series, 920Ω, 1.6A, 9.2mm x 6mm x 5mm
Stock Locations:
Availability:
213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.76

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744226 is a WE-SL2-series 1.6A/80VDC SMD common mode Line Filter with UL compliant housing, bifilar winding style, 10µH inductance and 0.92kR impedance. This filter offers wide bandwidth with the core materials NiZn/MnZn. Ideal for distortion-free removal of noise from transmitted electrical signals. Suitable for current compensated choke for data and signal lines, filter for measurement signals, CAN and suppression for common mode noise.
-40 to 125°C Operating temperature range

Show

744226 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SMD
Voltage Rating (DC)	80 V
Current Rating	1.6 A
Capacitance Tolerance	±30 %
Inductance	10 µH
Resistance	0.08 Ω
Inductance Tolerance	±30 %
DC Resistance (DCR)	≤80 mΩ
Current Rating (Max)	1.6 A
Current Rating (DC)	1.6 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	80 V
Resistance (DC Max)	80 mΩ
	Show
Size-Length	9.2 mm
Size-Width	6 mm
Size-Height	5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
