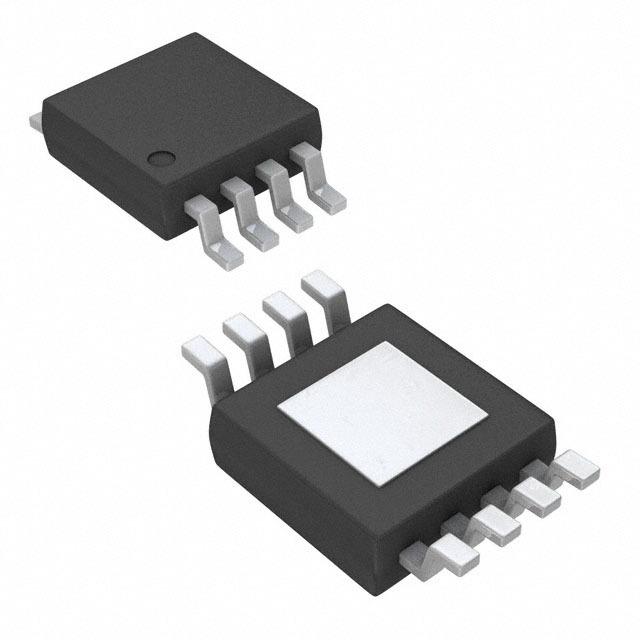

Image is for your reference only,please check specifications for details

TPS7A6650QDGNRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC44367666
Category:
Voltage Regulator
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS7A6650QDGNRQ1 Fixed LDO Voltage Regulator, 5.5V to 40V, 300mV Dropout, 5Vout, 150mAout, MSOP-8
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 54.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A6650QDGNRQ1 is a 5V fixed output low-dropout (LDO) Linear Regulator designed for up to 40V Vin operations. With only 12µA quiescent current at no load, they are quite suitable for standby microprocessor control-unit systems, especially in automotive applications. The devices feature integrated short-circuit and overcurrent protection. The devices implement reset delay on power up to indicate the output voltage is stable and in regulation. One can program the delay with an external capacitor. A low-voltage tracking feature allows for a smaller input capacitor and can possibly eliminate the need of using a boost converter during cold-crank conditions.
AEC-Q100 Qualified
Low input-voltage tracking
Integrated power-ON reset
Thermal shutdown
Short-circuit protection
Green product and no Sb/Br

Show

TPS7A6650QDGNRQ1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Supply Current	20 µA
Number of Positions	8 Position
Quiescent Current	0.012 mA
Output Capacitor Type	Ceramic
voltage rating	300 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	40 V
Input Voltage (Min)	5.5 V
Output Voltage (Min)	5 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	4V ~ 40V
	Show
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
